FPC-0.5mm-2.0H，拉拔式下接触，FPC-052-116-XX01，Contacts bottom
CIB编号：50105XXX(详细编码，与PIN数量有关，请联系销售部)
产品料号：FPC-052-116-XX01(XX=No of Contact,04~64 )
市场类似型号：FPC 0520,下接，抽拉式，拉拔式，FPC 2.0H，FPC下接触
尺寸图(pdf)：点击预览或下载

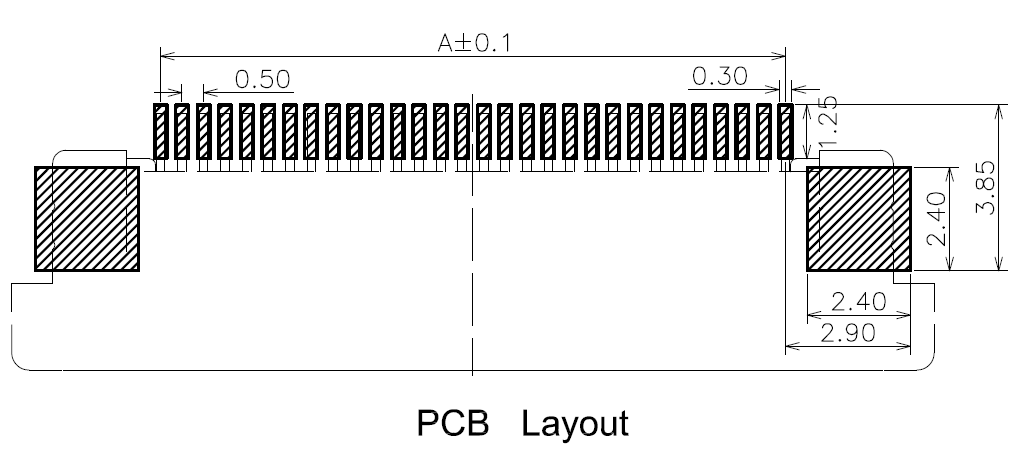

PCB图(dxf)： 点击下载(密码请联系在线客服，或邮件索取）
规格书：点击下载
3D图：点击下载
Product Specification
|
电气 |
|
|
Current Rating |
0.5A |
|
Voltage Rating |
25V |
|
Contact Resistance |
100m Ohms |
|
Insulation Resistance |
100M Ohms |
|
Withstanding Voltage |
500V AC |
|
机械 |
|
|
Insertion Force |
|
|
Extraction Force |
|
|
Operating Temp |
-20~+70℃ |
|
Durability Life |
|
|
材料 |
|
|
Metal |
Copper Alloy |
|
Plating |
Gold/Sn |
|
Plastic |
LCP |
|
备注 |
3.5KPCS/Reel |
产品卖点：此款FPC性能稳定，自动机生产，品质保证。
