开关3*4*H SMD，二脚，带定位柱，TS-53B2-XX69-Y，2.0H/2.5H/1.8H/3.0H，,白色/黑色
CIB编号：60104***
产品料号：TS-53B2-XX69-Y
市场类似型号：轻触开关3X4 SMD,2.0H/2.5H/1.8H/3.0H
尺寸图(pdf)：点击预览或下载

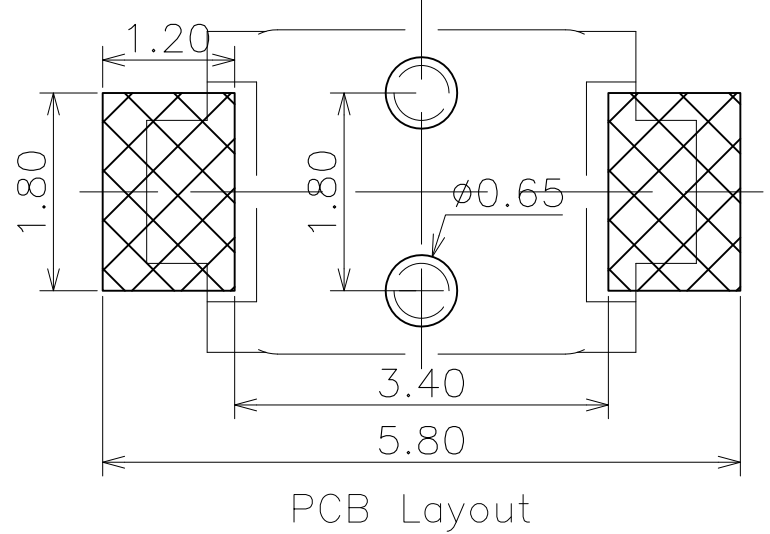

PCB图(dxf)： 点击下载(密码请联系在线客服，或邮件索取）
规格书：点击下载
3D图：点击下载
在线查看图纸：
Product Specification
|
电气 |
|
|
Current Rating |
0.5A |
|
Voltage Rating |
10V |
|
Contact Resistance |
100m Ohms |
|
Insulation Resistance |
100M Ohms |
|
Withstanding Voltage |
500V AC |
|
机械 |
|
|
Operating Force |
250/180/......(±50gf) |
|
Operating Temp |
-20~+70℃ |
|
Durability Life |
50000Cycles |
|
材料 |
|
|
Metal |
Copper Alloy/SUS |
|
Plating |
Sn |
|
Plastic |
PPA/LCP |
|
备注 |
3KPCS/Reel |
产品卖点：此款产品性能稳定，品质保证。
